Our Sliding Barn Doors

Bottom X

This is a split panel type of door where an “X” is constructed on the bottom side of the door and the top half of the door has a blank panel with no design other than the basic frame.
Bottom Z

This is a split panel type of door where a “Z” is constructed on the bottom side of the door and the top half of the door has a blank canvas with no design other than the basic frame.
British Flag Single

The construction of this door looks like a British flag. The whole flag is built into just one door
British Flag Double

This barn door style can only be accomplished using two doors. A right arrow door on the left side and and a left arrow door on the right side. When the doors are closed and tightly touch each other, they resemble the design of a British Flag known as the Union Jack Flag or union flag.
Double X Split Panel

An “X” on the top and bottom of the same door

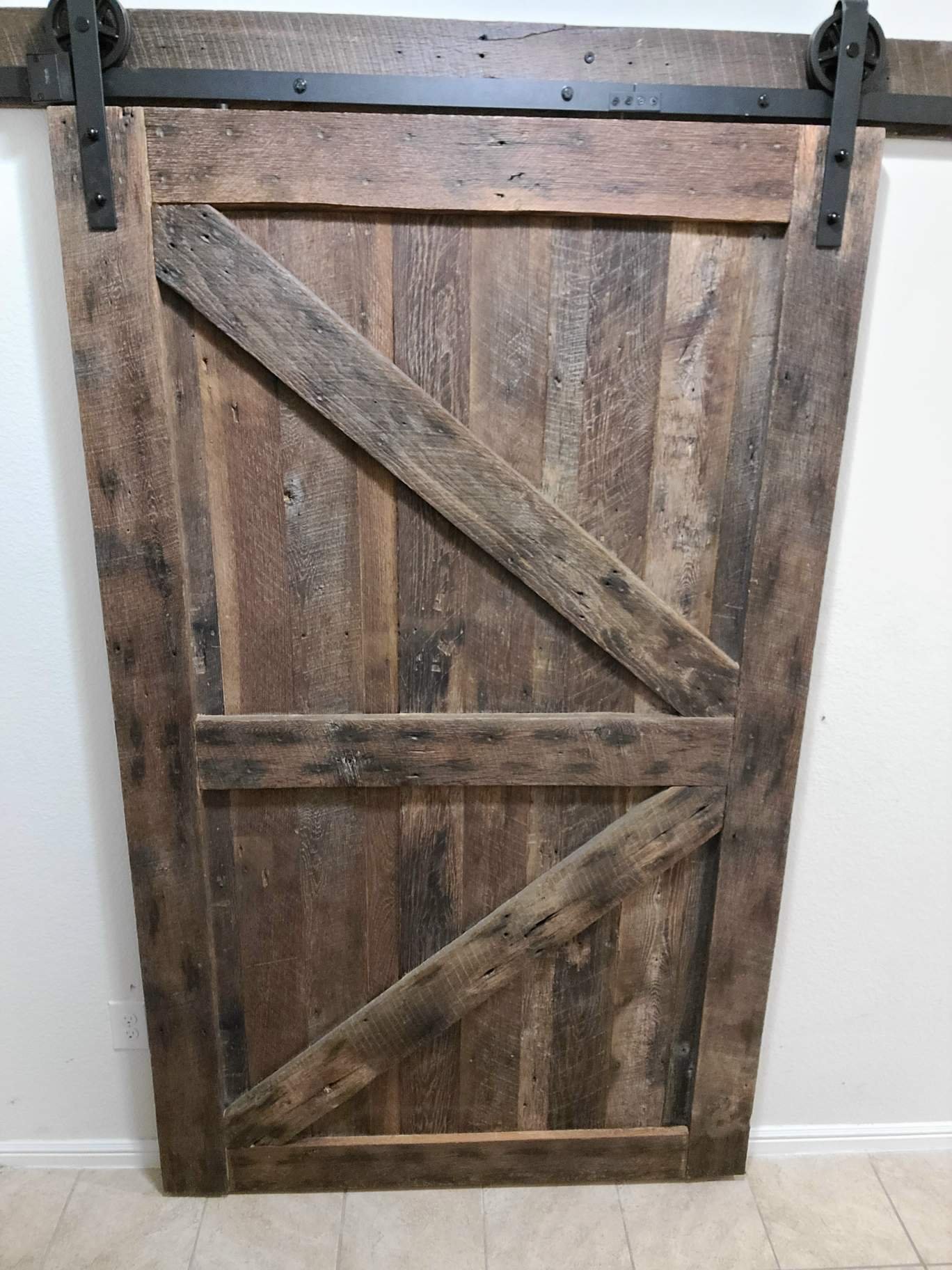

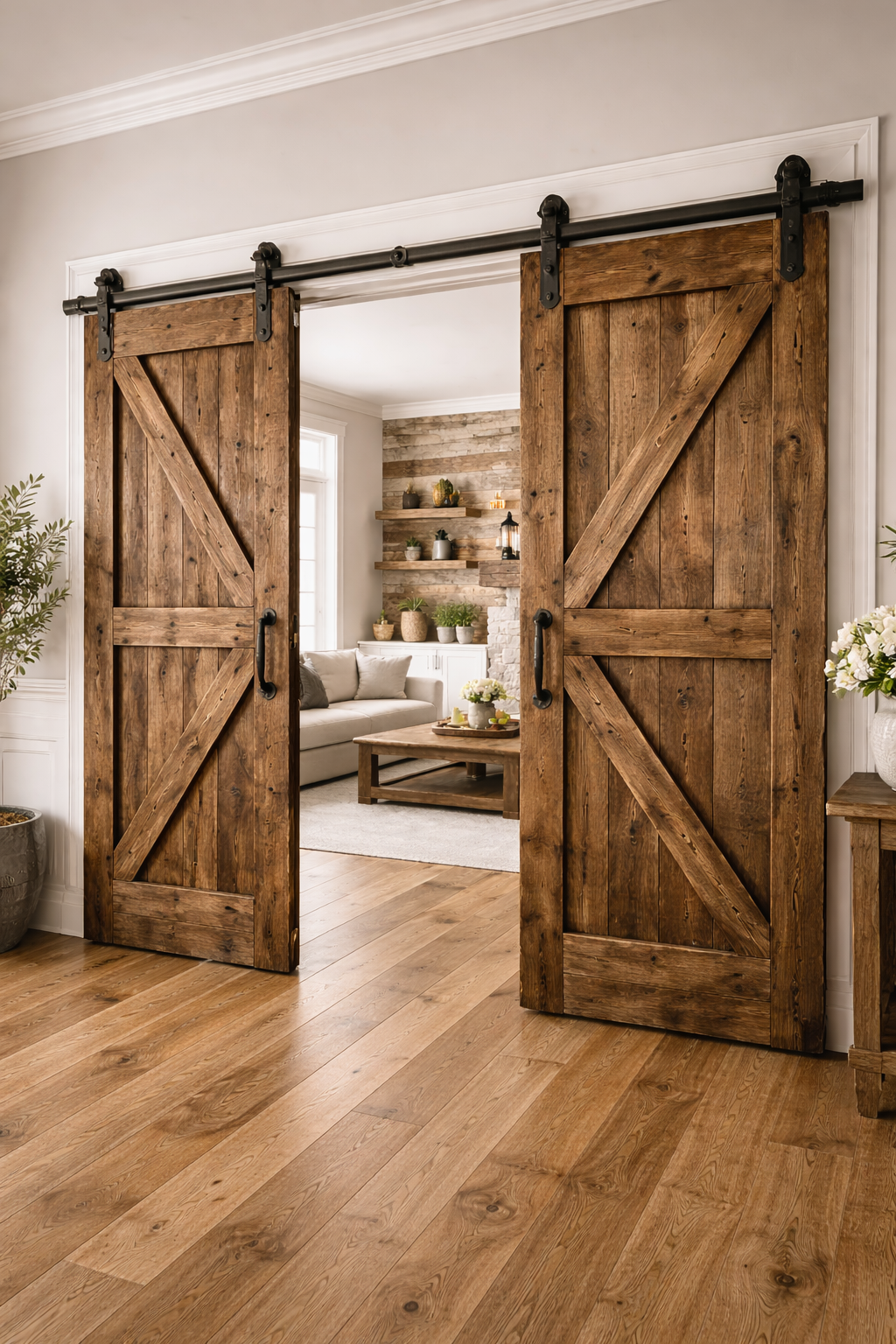

Double Z

If you look close at this barn door it appears that two “Z’s” are built into the door. Using the bottom of the top Z as the top of bottom Z
Down Arrow Split Door

Down Arrow Split Door has a divider going down the middle allowing the right and left side planks to be cut at opposite 45 degree angles so it appears that an arrow facing down is built into the door. Of course this door could be turned upside down to make an up arrow.
Dutch Door

The top and bottom of this door can be open separately from each other or attached together to make one door. This is not a sliding door application but is used in a normal doorway like a normal door. It is important that the frame is built specifically for this door. Sometimes this style barn door can swing into a room and into a hallway. Also know as a Split or Saloon style door.
Herringbone Pattern

Equal size rectangular planks assembled in a zig-zag. The zig-zag could actually go multiple directions through the piece. Ends are squared off to line up with each other.
45 Degree Herringbone

Equal size rectangular planks assembled in a zig-zag. The zig-zag could actually go multiple directions through the piece. Ends are cut at a 45 degree angle and not squared up like a normal herringbone pattern. A sliding barn door could appear to have an up, down, left or right arrow using this design
Large X

A giant “X” covers the full door known as a X Brace
Large Z

A giant “Z” covers the full door. Known as a Z Brace
Laundry

Built with a frosted piece of glass that has the words “laundry” or any other words indicating that beyond the door is a laundry room. The design on the bottom can be changed to any design.
Left Arrow

It looks like an arrow pointing left. Also known as a “K Brace”. Looks like a “K” on the left side of the door with a mid brace in the center of the door.
Mid Bar

Has 3 planks going right to left on a sliding barn door. One on top, in the middle and one on the bottom.
Pantry

Built with a bevold piece of glass that can be see through or frosted and has the words words “Pantry” or any other words indicating that beyond the door is a pantry design on the bottom can be changed to any design.
Plank

Like a mid bar but does not have the middle brace. Just a brace on the top and bottom going right to left.
Right Arrow

It looks like an arrow pointing to the right with a plank in the middle. Also known as a British Brace and makes up the left side of the double door combo if making sliding doors that look like the British Flag
Rustic Tin

Using tin from an original barn and supported with planks in any design you can imagine.
Single Panel

Has a frame going all the way around the door with planks going either vertical or horizontal.
Triple X

Has three “X”. One at the top, middle and bottom
Two Panel

Its like a mid bar but also has support planks on the right and left sides. This gives a frame all the way around the door
Up Arrow

Looks like an arrow. Can be flipped upside down to make a down area.
Up Arrow Split

Has an arrow facing upwards to the sky. Also has a brace in the center going from top to bottom.

Determining Barn Door Dimensions

Before you get started make sure you have the following:

Something to write with. (Pencil is best!)
A pad of paper
Tape Measure
Small ladder or step stool

Measure your doorway

There are two separate ways to measure for your sliding barn door.

If your doorway has trim
If your doorway does not have trim

Barn door dimensions if current doorway has opening.

Measure from the outside edge of your trim to the outside edge of the trim on the other side going left to right.
Write this number down in inches and label it outside trim to outside trim.
Add 2” to 4” to the measurement you wrote down labeled outside trim to outside trim. Note: most sliding barn doors will need 1” to 2” extra on each side of the trim. Wider is better if it fits.

Barn door dimensions if current doorway does NOT have opening.

Measure the inside of the doorway going left to right.
Write this number down in inches and label it “doorway”.
Add 2” to 4” to the measurement you wrote down labeled doorway. Note: most sliding barn doors will need 1” to 2” extra on each side of the trim. Wider is better if it fits.

Now that you have the width of your door you need to measure the height.

Using your pencil draw a small line about 1/2 inch wide where the center of your barn door track system will go.
Measure from the small line to the floor.
Take away 1 inch from center of track to floor measurement. This is how tall your door should be.

Note. The door will normally need about 1 inch clearance between the floor and the bottom of the door.

At this point you want to make sure your door will have enough room to open. You need enough wall space for twice the width of your door. Take the width of the new door you are wanting and double it. You will need this much room on your wall for your door to open fully without blocking your doorway.

Barn Door Track Systems

When you choose a door track system you want to choose one that is cosmetically appealing as well as works functionally with your door.

Most sliding barn doors will be installed using a barn door track system. The track will normally go right above the doorway (1 to 2 inches) or in the middle between the top of the doorway and the ceiling.

Type of Track Systems
Single: Built for a single barn door with a track system that is mounted to the wall

Double: French Door Built for a single barn door with a track system that is mounted to the wall.

Ceiling Mount: Mounted to the ceiling. Could accommodate single or double doors.
